Precision Humidity Control for Space-Constrained Industrial Environments
Uncontrolled humidity leads to corrosion, product degradation, microbial growth, equipment instability, and regulatory risk. In many facilities, traditional cooling-based systems struggle to maintain stable moisture levels—especially in partial-load or low-temperature conditions.

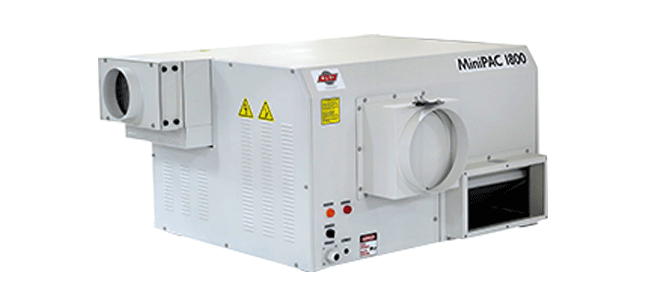

Bry-Air MiniPAC® is a compact, self-contained desiccant dehumidification system engineered to deliver consistent humidity control where space, energy efficiency, and reliability matter.
What is MiniPAC®?
MiniPAC® is a compact desiccant-based dehumidifier available in airflow capacities from 100 to 2,700 CFM, designed for standalone operation or seamless integration with existing HVAC systems.
Unlike cooling-only solutions, MiniPAC® uses Bry-Air’s desiccant rotor technology to remove moisture independently of temperature, enabling precise humidity control across diverse operating conditions.
Why MiniPAC®?
Stable Humidity Control Without Over-Cooling
Maintains precise humidity levels without relying on excessive cooling and reheating, helping improve energy efficiency and overall system stability.
Compact Footprint for Retrofit Flexibility
Designed to fit in constrained mechanical spaces, ideal for upgrading existing buildings or adding dedicated humidity control to specific zones.
Lower Lifecycle Maintenance
Washable filters and durable desiccant rotor design reduce consumables and long-term maintenance burden.
Quiet & Continuous Operation
Engineered for reliable, continuous-duty performance in industrial and institutional environments.
Flexible System Integration
Can operate independently or enhance central air systems to achieve building-wide or room-specific humidity control.
Ideal Applications
MiniPAC® supports controlled humidity environments across:
- Pharmaceutical labs and compounding areas
- Electronics and component storage
- Data centers and control rooms
- Archival storage and museums
- Food processing facilities
- R&D and quality control labs
- Critical material storage rooms
Where humidity stability protects assets, compliance, and process integrity.
Technical Highlights
- 8 standard airflow models (100–2,700 CFM)
- Multiple voltage configurations (U.S.-compatible)
- Independent process and reactivation air streams
- Differential pressure and safety controls
- Optional pre- and post-cooling coils
- Optional stainless steel construction
- Designed for continuous operation
- Many more custom options available
Detailed performance data and psychrometric charts available upon request.
Built on Bry-Air Desiccant Rotor Technology
At the core of every MiniPAC® unit is Bry-Air’s engineered desiccant rotor—designed for stable adsorption performance, durability, and long-term reliability in demanding environments.
Manufactured in the United States. Backed Globally.
Bry-Air America operates independently with its own U.S.-based manufacturing facility, engineering team, and technical support infrastructure.
Customers benefit from:
- Domestic manufacturing and quality control
- Direct engineering support
- Reliable spare parts continuity
- Lifecycle service support
All supported by Bry-Air’s global experience in industrial humidity control systems.
Precision Environmental Control — Without Compromise
MiniPAC® delivers compact, dependable humidity control engineered for performance-critical environments.
When moisture control cannot fail, MiniPAC® provides stability, efficiency, and long-term reliability—backed by Bry-Air’s engineering discipline and U.S.-based manufacturing strength.
MiniPAC® Troubleshooting Guide…Read More

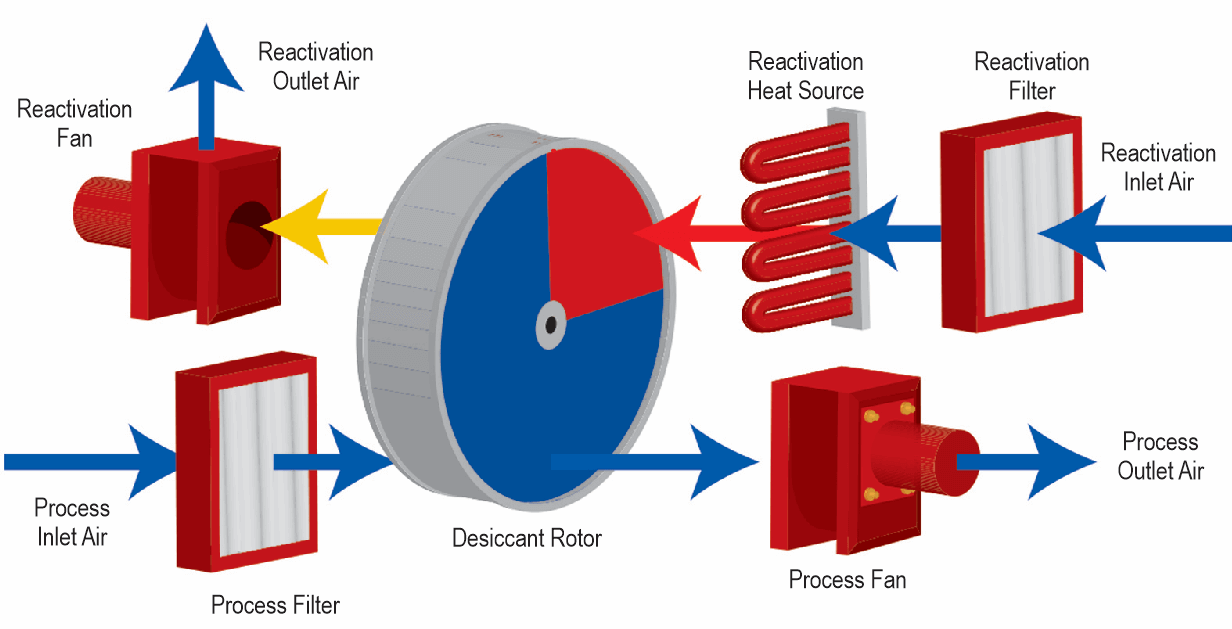

The moisture is adsorbed in the dehumidification sector by the EcoDry rotor and is exhausted in the reactivation sector by a stream of hot air in a counter flow.
Following the reactivation process, the adsorption sector is again ready to adsorb the moisture. Thus, the two processes of “moisture adsorption” and “reactivation” are takes place with separate airflows continuously and simultaneously. Positive sealing between chambers prevents mixing of the process and reactivation air stream.

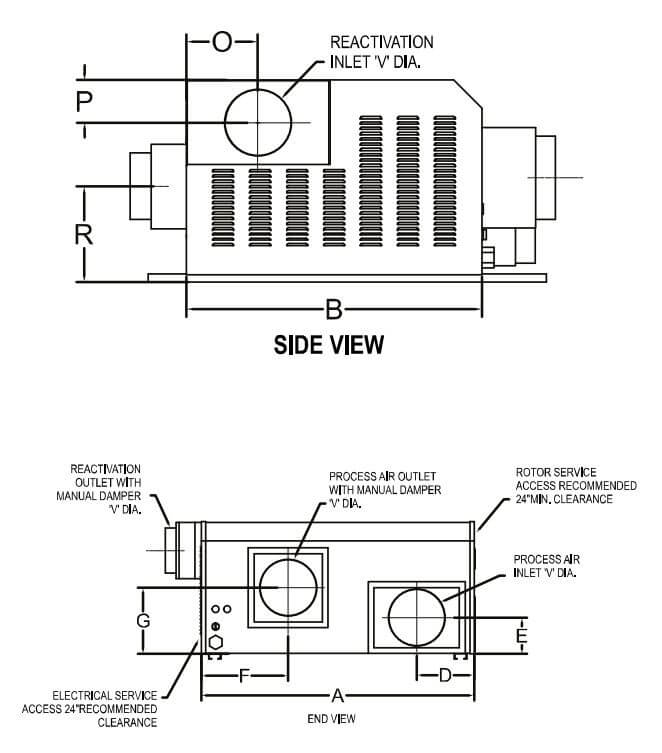

| Dimensional Data (Inches) |
| DIM |
MP-100 |
MP-175 |
MP-350 |
MP-600 |
MP-900 |
MP-1200 |
MP-1800 |
MP-2700 |
| A |
26-11/16 |
29-1/8 |
35-1/8 |
41-1/4 |
47-1/2 |
48-1/4 |
48-3/8 |
48-5/16 |
| B |
18-7/8 |
21-1/4 |
24-13/16 |
28-3/4 |
35-1/16 |
34-7/8 |
39-5/8 |
45-7/16 |
| C |
15-1/2 |
17-1/2 |
19-7/16 |
21-13/16 |
23 |
24-3/4 |
28-11/16 |
32-9/16 |
| D |
5-7/16 |
6-9/16 |
7-5/8 |
8-13/16 |
9-7/8 |
9-7/8 |
11-7/8 |
13-7/16 |
| E |
4-5/16 |
4-5/16 |
5-1/4 |
6-5/16 |
6-5/16 |
6-5/16 |
6-3/16 |
6-3/16 |
| F |
8-7/8 |
9-1/4 |
11-7/8 |
14-3/8 |
14-13/16 |
15-15/16 |
16-5/16 |
16-7/16 |
| G |
8-7/16 |
10-7/16 |
10-5/8 |
11-3/16 |
11-5/16 |
13-3/4 |
16-7/16 |
18-13/16 |
| O |
4-3/8 |
4-7/16 |
5-11/16 |
7-1/8 |
8-7/16 |
8-7/16 |
8-1/2 |
8-1/2 |
| P |
3-7/16 |
3-3/8 |
3-7/16 |
5 |
5 |
5 |
5 |
5-9/16 |
| Q |
8-13/16 |
9-3/16 |
11-11/16 |
14-3/16 |
14-3/8 |
14-9/16 |
15-5/8 |
15-13/16 |
| R |
6-15/16 |
6-11/16 |
8-11/16 |
10-9/16 |
10-1/2 |
9-15/16 |
10-5/16 |
13-3/16 |
| DIA V (P IN) |
3-13/16 |
3-13/16 |
5-5/8 |
7-3/4 |
7-3/4 |
9-3/4 |
8-9/16 x 17-11/16 |
22-11/16 x 10-1/2 |
| DIA X (P OUT) |
3-13/16 |
3-13/16 |
5-5/8 |
7-3/4 |
7-3/4 |
9-3/4 |
11-7/8 |
17-3/16 x 9-1/16 |
| DIA Y (R IN) |
3-13/16 |
3-13/16 |
5-5/8 |
7-3/4 |
7-3/4 |
7-3/4 |
7-3/4 |
16-3/4 x 9-13/16 |
| DIA Z (R OUT) |
3-13/16 |
3-13/16 |
5-5/8 |
7-3/4 |
7-3/4 |
7-3/4 |
7-3/4 |
7-3/4 |
| WEIGHT (LBS) |
145 |
163 |
240 |
324 |
421 |
445 |
518 |
798 |
MOISTURE REMOVAL CAPACITY LB/HR
|
3.4 |
6.6 |
12.7 |
21.4 |
32.4 |
44.4 |
65.6 |
96.3 |
